Using a Point-to-Point Tunnelling Protocol, Virtual Private Network (PPTP VPN) client on a Raspberry Pi


Why use a VPN?

VPN or a Virtual Private Network is a common way of securing an Internet connection using encryption.

Basically a VPN sets a trusted, designated server on the Internet to act as a man in the middle. As a VPN client, all your web traffic gets encrypted and directed to this designated machine. It decrypts and then reroutes the traffic to its intended destination. This gives you a both benefits and disadvantages.

Having an encrypted connection between yourself and a trusted VPN server means your Internet traffic is mostly safe from snoopers. That could be anyone on the same Wi-Fi network as you, your ISP or even big-brother governments.

If you are behind a government or corporate firewall, the VPN could be used to reach blacklisted websites. As the firewall will only see that your traffic is directed to the designated VPN server.

A VPN also allows you to hide the point of origin of your Internet request from your destination. As the designated server intercepts and decrypts your Internet traffic before it resents it. This fools the destination to believe the Internet request came from the designated server and not from you.

If a website or service has region restrictions placed on it to allow only users from particular countries access. A VPN server hosted in a permitted country allows you to bypass this form of restriction.

The most obvious disadvantage in using a VPN server is that adding an extra layer of Internet bureaucracy slows down your overall Internet experience. The encryption requires more processing time and it consumes more bandwidth. Plus adding a man the middle means your Internet traffic isn’t going to be traversing across the Internet via the quickest possible route.

About this project

For this project I am going to carry out a VPN client connection on a Raspberry Pi without using any GUI tools. This could be used with a headless or server Raspbian Pi set-up. It should also work fine on a Ubuntu based Linux system.

Also this tutorial will use the most common VPN protocol PPTP, known as the Point-to-Point Tunnelling Protocol. Its encryption is not as secure or as safe as some other VPN options but it is the most supported of the protocols out there.

Software installs and updates

First in a Pi shell we need to update our repositories, our Pi operating system and install PPTP for Linux.

sudo apt-get update -y
sudo apt-get upgrade -y
sudo apt-get install -y pptp-linux

sudo apt-get install pptp-linux

Setup and configuration

The pptp-linux installation includes the very useful Perl script pptpsetup that is found at /usr/sbin/pptpsetup.

List the help options for pptpsetup.

pptpsetup --help

pptpsetup has 6 options to create a PPTP connection configuration.

pptpsetup
--create [tunnel name]
--server [vpn server]
--username [vpn server username]
--password [vpn server password]
--encrypt (optional)
--start (optional)

pptpsetup --help

Example usage of pptpsetp.

sudo pptpsetup --create examplela --server pptp-la.example.com --username exampleuser --password examplepassword --start

The --create option is the ‘tunnel’ name you wish to give your connection. It can not have spaces or weird characters and should be something that is descriptive of the VPN server it will connect to such as a geographical location.

--server Is the address of the VPN server to connect to.

--username Is your assigned user name used to authorise access to the VPN server.

--password Is the password required by the user name.

--encrypt Toggles encryption for all communication between your Pi and the VPN server. While this setting is optional, most VPN servers will not accept a connection unless encryption is in use.

--start Will connect to the VPN after creating your new connection configuration.

For the rest of this tutorial I will use my real world example of pptpsetup. Replace any references to my proxpnuk configuration with your own VPN server configuration.

sudo pptpsetup --create proxpnuk --server pptp-uk1.proxpn.com --username xxxx --password xxxx --encrypt --start

pptpsetup realworld

If you have a Connection termination but you are sure your server address, user name and password are correct, try using the --encrypt option.

pptpsetup creates a configuration file that gets placed in /etc/ppp/peers/ which is a superuser protected directory so you will need to run sudo to view its content.

sudo ls -l /etc/ppp/peers/
sudo cat /etc/ppp/peers/proxpnuk

cat proxpnuk

You can see your point-to-point protocol connection using ifconfig -s. It should be listed under ppp0.

ifconfig -s

pptpsetup can also be used to delete an existing configuration file.

sudo pptpsetup --delete [tunnel name]

pptpsetup delete

Usage

PPTP for Linux also installed two Bash scripts that are used to connect and disconnect to your PPTP VPN server. You can use the -h option to see the scripts help text.

/usr/bin/pon and /usr/bin/poff are scripts that call the /usr/sbin/pppd application. pppd known as the Point-to-Point Protocol Daemon is a complicated program but if needed its manual with an endless list of options can be found at http://ppp.samba.org/pppd.html

pon -h
poff -h

pon and poff -h

If connected let us disconnect our current ppp connection using the poff script.

sudo poff -a
ifconfig -s

Ifconfig should only list eth0 and lo under the Iface column.

ifconfig -s

Let us reconnect again.

sudo pon proxpnuk updetach
ifconfig -s

sudo pon proxpnuk updetach

To see your connection settings for troubleshooting.

sudo pon proxpnuk debug dump

To save the debug output to a file and view it.

sudo pon proxpnuk debug dump > ~/proxpnuk-debug.txt
cat ~/proxpnuk-debug.txt

pon proxpnuk dump proxpnuk-debug.txt

PPTP for Linux has a log file that can also be useful for troubleshooting. It is found at /var/log/messages. The tail command normally displays the last 10 lines of text file but when it’s combined with the -f follow option it displays the most recent text appended to the file.

tail -f /var/log/messages

Press [Ctrl] C to exit tail.

tail -f var log messages

Test for a VPN connection

I use the traceroute command to test for an active VPN connection. First make sure there is no ppp0 connection.

sudo poff -a
ifconfig -s

Then run traceroute to a well-known website such as google.com.

traceroute google.com

traceroute google.com no vpn

Make a note of the number of hops. In my case it took 8 hops for a request from my Raspberry Pi to reach Google’s servers.

Now if we enable our ppp0 connection and try again, you will probably discover that connecting to Google takes exactly the same number of hops.

sudo pon proxpnuk updetach
traceroute google.com

traceroute google.com no route

This probably means the internet traffic sent and received from the Pi is not using our VPN connection.

We need to create a route to tunnel our Internet traffic through our VPN. The route command at /bin/route is perfect to carry out this task.

sudo route add -net "0.0.0.0/0" dev "ppp0"

The -net 0.0.0.0/0 sets the target network of the route to be the default route. dev toggles a device to reroute our traffic to. While PPP connection number one ppp0 is that device.

To check if our route was successful use netstat with the -a all sockets option and feed the output into grep to filter and display only the lines that contain the string "/var/run/pptp/". These lines signify our PPTP routes.

netstat -a | grep "/var/run/pptp/"

route add

Test your connection again and you should have a greater number of hops than last time.

traceroute google.com

traceroute google.com with route

That meant the connection to Google.com from your Pi had rerouted through your VPN server. Congratulations.

VPN at boot

To automatically connect your Pi to a VPN server at start-up I’d recommend placing the following script into /etc/rc.local. This file runs all commands within as a superuser, at the end of a Pi boot but before the user login prompt. I use the -B option with the nano text editor to backup the rc.local file before making any changes to it.

sudo nano -B /etc/rc.local

Make sure you insert any script before the exit 0 line and after the hashed # comments.

vpn="on"
if [ $vpn = on ]; then
printf "\nVPN connection to ProXPN UK\n"
pon proxpnuk updetach
printf "Add Internet traffic route through ppp0\n"
sudo route add -net "0.0.0.0/0" dev "ppp0"
printf "Netstat output of all PPTP sockets\n"
netstat -a | grep "/var/run/pptp/"
fi

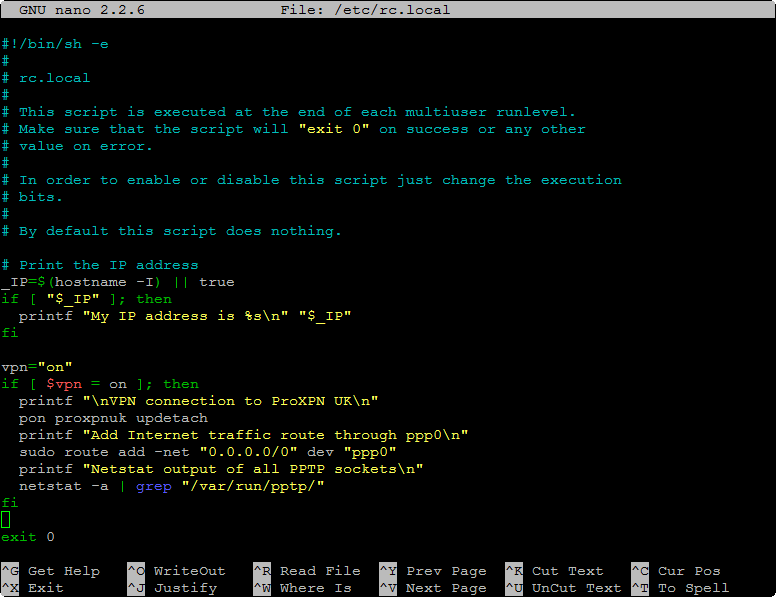

nano etc rc.local

The script is pretty self-explanatory and I have contained it within a conditional statement to disable if needed. To do this simply change the vpn="on" variable to something else such as vpn="off".

In nano press the [Ctrl] X keys to prompt for a Save modified buffer? query. Answer Y at the prompt to save and press enter to keep the current File Name to Write.

You don’t need to reboot to test your changes to rc.local.

sudo /etc/rc.local

Executes the script same way as it would with a reboot.



sudo etc rc.local

fi

I am happy to reply to any questions about this post but I am no expert on the subject of VPN and can not help in setting up a VPN server or using other client protocols such as OpenVPN. Extracting this information on PPTP for Linux was quite time-consuming.
